Decoding Supercapacitors: How Three Core Components Define Their Performance Limits?
In the field of new energy storage and high-power applications, supercapacitors have become a critical complement to lithium-ion batteries, thanks to their unique advantages of "millisecond-level response, millions of cycles, and wide temperature adaptability." They are widely used in scenarios ranging from regenerative braking energy recovery in rail transit, start-stop power supply for new energy vehicles, to instantaneous power buffering for industrial equipment. Behind these outstanding performances lies the precise synergy of three core components inside supercapacitors—electrodes, electrolytes, and separators—while different manufacturing processes (dry and wet methods) further influence the performance of these components. These three components act like the "skeleton, blood, and barrier" of a supercapacitor: each undertakes key functions, and they interact and constrain each other, collectively determining the capacitance, power density, lifespan, and safety of the supercapacitor.
I. Electrodes: The "Core Carrier" for Charge Storage, Defining Capacity and Power Limits (Including Dry/Wet Process Differences)
Electrodes are the "battlefield" where supercapacitors store charge. Their material selection, structural design, and manufacturing processes (dry vs. wet) directly determine how much charge a device can store (capacity) and how quickly it can discharge (power density), accounting for 40%-60% of the total cost of a supercapacitor. Unlike lithium-ion batteries that rely on chemical reactions for charge storage, supercapacitors depend entirely on electrode properties for their charge storage mechanisms, mainly categorized into "Electric Double Layer Capacitance (EDLC)" and "Pseudocapacitance (PC)." Differences in manufacturing processes further amplify the performance gaps of electrodes.
1. EDLC Electrodes: "Physical" Charge Storage via High Specific Surface Area
The core of EDLC electrodes is high specific surface area carbon materials. Charge is stored through electrostatic adsorption via an "electric double layer" formed at the interface between the electrode surface and the electrolyte—electrons accumulate on the electrode side, while ions in the electrolyte form a mirrored charge layer on the other side. This entire process involves no chemical reactions, only physical adsorption. Currently, mainstream carbon-based materials include activated carbon (AC), carbon nanotubes (CNTs), and graphene, with significant differences between dry and wet processes in electrode fabrication:

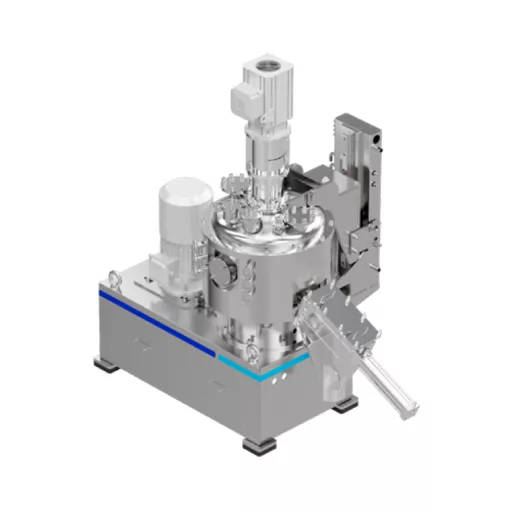

Wet-process electrodes: As the traditional mainstream process, it requires mixing active materials (e.g., activated carbon), conductive agents, binders, and organic solvents such as N-methylpyrrolidone (NMP) into a slurry. The slurry is then coated onto aluminum foil current collectors and dried at 120-150°C to remove solvents. Its advantages include mature technology, suitability for large-scale mass production, and high surface flatness of the electrode. However, it has obvious drawbacks: the solvent drying process causes collapse of internal micropores in the electrode (10%-15% loss in porosity), narrowing ion transport channels. Meanwhile, solvent residues (typically 0.1%-0.5%) increase electrode internal resistance. Additionally, 50-100 liters of organic solvent are consumed per 10,000 m² of electrodes produced, posing environmental and cost pressures.
Dry-process electrodes: A new green process that eliminates solvents. Active materials, conductive agents, and binders are directly mixed into dry powder via high-speed shearing, then pressed onto current collectors using precision calendering at 5-10 MPa. Its advantages are threefold: first, it preserves the complete porous structure of the electrode (porosity up to 50%-60%, 8%-12% higher than wet-process), increasing ion transport efficiency by over 20%; second, no solvent residues reduce internal resistance by 15%-25%, enabling power density to exceed 12,000 W/kg (compared to 8,000-10,000 W/kg for wet-process); third, it omits drying and solvent recovery steps, cutting energy consumption by 40% and achieving zero pollutant emissions, aligning with "dual carbon" goals. However, dry-process has higher requirements for powder mixing uniformity (error must be controlled within 3%), and current equipment investment is 15%-20% higher than wet-process. It is more suitable for high-end, high-power scenarios (e.g., aerospace, ultra-fast charging devices).
To ensure efficient charge transfer and structural stability, both dry and wet-process electrodes consist of "active materials (80%-90%) + conductive agents (5%-10%) + binders (3%-5%)": conductive agents (e.g., carbon black, graphite) reduce electron transfer resistance, while binders (PVDF for wet-process, water-soluble CMC for dry-process) fix active materials onto current collectors to prevent material detachment during charge-discharge cycles.
2. Pseudocapacitive (PC) Electrodes: "Chemical" Charge Storage via Redox Reactions
To break through the capacity limitation of carbon materials, pseudocapacitive electrodes are required. These electrode materials undergo fast and reversible redox reactions (Faradaic reactions) with the electrolyte, enabling additional charge storage on the electrode surface. Their capacity is 5-10 times that of EDLC, bridging the gap between supercapacitors and lithium-ion batteries.
Mainstream pseudocapacitive materials fall into two categories:
Metal oxides: Such as RuO₂ and MnO₂. RuO₂ exhibits the best pseudocapacitive performance but is extremely costly (tens of thousands of yuan per kg), limited to military or precision instruments. MnO₂ costs only 1/50 of RuO₂ and is environmentally friendly. When compounded with activated carbon (forming "EDLC+PC" hybrid electrodes), it enhances capacity while maintaining high power, making it suitable for micro-energy storage and sensors.
Conductive polymers: Such as polyaniline (PANI) and polypyrrole (PPy). They offer good flexibility and solution processability, enabling the fabrication of flexible electrodes for wearable devices and flexible electronics. However, their cycle stability is poor (typically 30% capacity decay after 10,000 cycles), requiring doping modification to extend lifespan.
In terms of manufacturing processes, pseudocapacitive electrodes still primarily use wet-process (as metal oxides and conductive polymers require solvent dispersion for uniformity), but dry-process is making breakthroughs. For example, via electrospinning dry-process, MnO₂ and CNTs are fabricated into composite nanofiber electrodes, with specific surface area exceeding 3,000 m²/g—30% higher capacity than wet-process MnO₂ electrodes and cycle life extended to 50,000 cycles (vs. ~20,000 cycles for wet-process).
II. Electrolytes: The "Blood" for Ion Transport, Key to Connecting Charge Cycles
If electrodes are the "charge warehouse," electrolytes are the "transport trucks"—they carry ions between the positive and negative electrodes. Their ionic conductivity, stability, and temperature range directly affect the supercapacitor’s power density (faster ion transport = higher power), operating voltage (maximum voltage without electrolyte decomposition), and lifespan (preventing electrode/separator corrosion). Without high-quality electrolytes, even large electrode surface areas cannot deliver optimal performance.
Based on form and ion systems, electrolytes are mainly divided into three types, with distinct technical characteristics that directly determine supercapacitor application scenarios:
1. Aqueous Electrolytes: Low-Cost, Safe "Entry-Level" Option
Represented by aqueous solutions of sulfuric acid (H₂SO₄) and potassium hydroxide (KOH), they offer ultra-high ionic conductivity (100-500 mS/cm, 5-10 times that of organic electrolytes), cost only 1/10 of organic electrolytes, and are non-flammable/non-explosive, ensuring maximum safety.
However, their fatal drawback is a narrow voltage window (only 0.8-1.2 V)—exceeding this voltage causes water to decompose into hydrogen and oxygen, leading to device failure. Thus, they have low capacity and are only suitable for low-voltage, low-energy scenarios such as toys, small sensors, and aqueous supercapacitor modules.
2. Organic Electrolytes: High-Voltage "Mainstream" Option

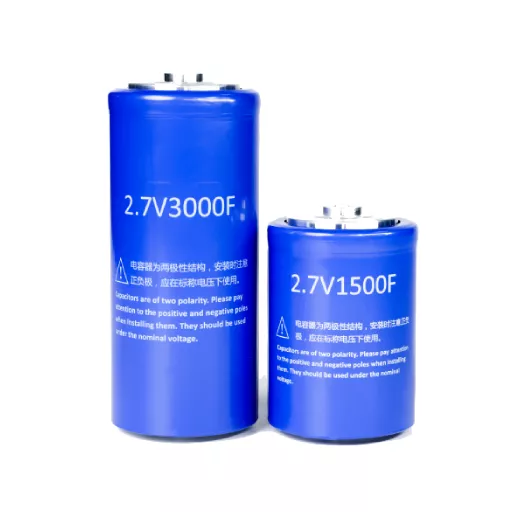

Represented by tetraethylammonium tetrafluoroborate (TEABF₄) dissolved in organic solvents like acetonitrile and carbonates, they have a wide voltage window (2.5-3.0 V)—2-3 times that of aqueous electrolytes—delivering higher capacity. They also exhibit good chemical stability and compatibility with carbon-based electrodes, making them the mainstream choice for commercial supercapacitors (accounting for over 80% of market share). They are widely used in industrial energy storage, rail transit, and automotive start-stop systems.
Nevertheless, they have obvious limitations: organic solvents (e.g., acetonitrile) are flammable; their viscosity increases at low temperatures, reducing ionic conductivity (only 1/3 of room temperature at -20°C); and they have higher costs, requiring explosion-proof enclosures.
3. Ionic Liquid Electrolytes: High-End Option for Extreme Environments
Composed of cations and anions (e.g., 1-ethyl-3-methylimidazolium tetrafluoroborate, EMIMBF₄) with no neutral molecules, they offer three key advantages: wide voltage window (3.0-4.0 V), wide temperature range (-50°C~150°C), and non-flammability/non-explosiveness. They are "game-changers" for extreme environment applications—at -40°C in plateau rail transit, capacity decay is less than 10%; in 85°C desert photovoltaic energy storage, cycle life still reaches over 500,000 cycles.
However, ionic liquids have high viscosity (5-10 times that of organic electrolytes at room temperature), leading to low ionic conductivity (5-30 mS/cm), and their cost is 3-5 times that of organic electrolytes. Currently, they are mainly used in military, aerospace, and special industrial scenarios with high performance requirements.
Notably, electrolytes must match electrode processes: dry-process electrodes, with high porosity, are better suited for high-conductivity electrolytes (e.g., high-concentration organic electrolytes, ionic liquids) to further reduce internal resistance; wet-process electrodes, with trace solvent residues, require electrolytes compatible with residual solvents (e.g., acetonitrile systems avoiding water contact), otherwise interface reactions will occur, shortening lifespan.
III. Separators: "Smart Barriers" for Safety and Ion Conduction, the Last Line of Defense Against Short Circuits
Separators are porous insulating films sandwiched between positive and negative electrodes. Though seemingly insignificant, they are the "last line of defense" for supercapacitor safety—they must block electrons between electrodes (preventing short circuits and fires) while allowing ions in the electrolyte to pass freely (ensuring normal charge-discharge) and absorb electrolytes to maintain continuous ion transport. A damaged or failed separator can cause an immediate short circuit, even combustion.
1. Mainstream Separator Types: From Single-Function to Composite Protection
Based on materials and structures, separators are divided into three categories, suitable for different electrolytes and application scenarios, and their selection must align with electrode processes:
Polymer separators: Represented by polypropylene (PP) and polyethylene (PE), they are made into porous structures via stretching (pore size 0.1-1 μm, porosity 40%-60%). They offer high mechanical strength (tensile strength up to 200 MPa), resistance to organic electrolyte corrosion, and cost only 1/5 of composite separators. They are the "standard configuration" for organic electrolyte supercapacitors, especially compatible with wet-process electrodes (wet-process electrodes have high surface flatness, ensuring good adhesion with PP/PE separators). However, they have poor high-temperature resistance (PP separators shrink at 160°C, causing short circuits) and moderate compatibility with high-porosity dry-process electrodes (requiring higher wettability to fill pores).
Cellulose separators: Made from plant fibers or regenerated cellulose, they have good hydrophilicity, fully absorb aqueous electrolytes, and are biodegradable, offering excellent environmental performance. They are suitable for aqueous supercapacitors and wet-process aqueous electrodes (wet-process aqueous electrodes contain moisture, ensuring good compatibility with cellulose separators) but have low mechanical strength, requiring cross-linking modification for enhancement.
Composite separators: Developed to overcome the limitations of single materials, common types include "PP/PE/PP triple-layer composite separators" (the middle PE layer has a low melting point, melting to block pores at high temperatures for "thermal shutdown" and preventing thermal runaway) and "ceramic-coated separators" (coated with Al₂O₃ or SiO₂ ceramic particles on PP/PE surfaces to improve high-temperature resistance and puncture resistance). These separators withstand temperatures above 150°C, significantly enhancing safety; their ceramic coatings also improve electrolyte wettability, making them more compatible with high-porosity dry-process electrodes (quickly filling electrode pores). They are suitable for high-risk scenarios such as new energy vehicles and high-temperature industrial energy storage but have higher costs.
2. Key Performance Indicators: Balancing Ion Conduction and Safety
Separator performance must balance "ion conduction" and "safety protection":
Porosity: Typically controlled at 40%-70%—too low hinders ion transport and reduces power density; too high weakens mechanical strength and increases breakage risk.
Temperature resistance: Requires no shrinkage or cracking in the range of -40°C~150°C, especially for automotive and industrial scenarios where long-term operation at temperatures above 85°C is required.
Wettability: Must be quickly and fully wetted by electrolytes; otherwise, "dry zones" form, increasing internal resistance and causing capacity decay.
IV. Comprehensive Comparison of Dry-Process vs. Wet-Process Supercapacitors and Synergy of Three Core Components
1. Core Differences and Advantages of Dry-Process vs. Wet-Process Supercapacitors
2. Synergy of Three Core Components: The "1+1+1>3" Performance Code
The outstanding performance of supercapacitors is not due to the "standalone performance" of a single component or process, but the "collaborative operation" of the three core components and manufacturing processes. A shortcoming in any link becomes a bottleneck for overall performance:
Pairing high-porosity dry-process electrodes with low-conductivity ionic liquid electrolytes fails to improve power density, even with a large "charge warehouse," due to slow ion "transport."
Using wet-process organic electrolyte supercapacitors with aqueous cellulose separators causes separator dissolution by organic electrolytes, leading to short circuits.
Combining dry-process pseudocapacitive electrodes (e.g., MnO₂-CNT composite electrodes) with aqueous electrolytes enhances capacity while maintaining high power, extending cycle life 2-3 times compared to wet-process aqueous pseudocapacitors.
Thus, "matched design" of the three core components and manufacturing processes is the core of supercapacitor R&D:
General-purpose supercapacitors (industrial energy storage, consumer electronics): Wet-process activated carbon electrodes + organic electrolytes + PP/PE separators, balancing cost and large-scale production needs.
High-power supercapacitors (rail transit, automotive start-stop): Dry-process CNT/graphene composite electrodes + high-conductivity organic electrolytes + ceramic-coated separators, enhancing power and safety.
Extreme-environment supercapacitors (plateaus, deserts): Dry-process temperature-resistant carbon electrodes + ionic liquid electrolytes + triple-layer composite separators, ensuring stable operation across wide temperature ranges.
Green low-cost supercapacitors (household energy storage, small devices): Wet-process aqueous electrodes + aqueous electrolytes + cellulose separators, suitable for low-voltage, low-energy scenarios.
Every technological breakthrough—from optimizing the specific surface area of electrode materials to improving the ionic conductivity of electrolytes and designing thermal shutdown functions for separators—centers on "three core components + process synergy." In the future, as dry-process equipment costs decrease and solid-state electrolytes and self-healing separators mature.
